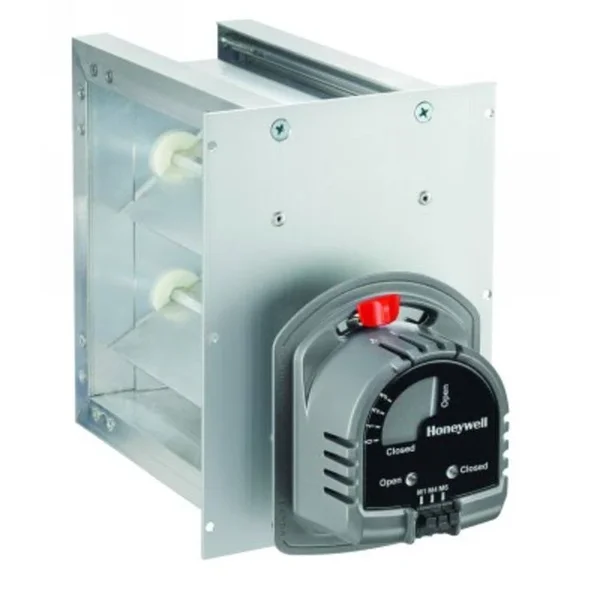

Honeywell TrueZONE ZD8X12TZ Rectangular Parallel Blade Damper

Description

Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct). Quieter operation with fewer blades. Solid construction using extruded aluminum frame and blades. Simple, easy-to-wire, two-wire installation. Fail-safe, normally open operation. Compatible with conventional and networked zoning. Features: Kevlar gearing reduces wear, more than doubling damper life. The ZD is typically used with the TrueZONE systems and other electronic zoning systems. It has a 24-volt motor used to control circulating air in heating, cooling and ventilating systems. Reliable, strong, 24-volt spring-return motor. It is used when a normally-open damper is required. Adjustable range stops. Mechanical visual position indicator for damper status. Kevlar gearing reduces wear, more than doubling damper life. Parallel blade design for low leakage performance. Honeywell ZD8X12TZ Truezone Damper 24V 2-Wire Description: The ZD is a power close and spring open damper. Solid construction using extruded aluminum frame and blades. Honeywell ZD8X12TZ Truezone Damper 24V 2-Wire Description: The ZD is a power close and spring open damper.

Key Features

• The ZD is typically used with the TrueZONE systems and other electronic zoning systems.
• It is used when a normally-open damper is required.
• Solid construction using extruded aluminum frame and blades.
• Honeywell ZD8X12TZ Truezone Damper 24V 2-Wire Description: The ZD is a power close and spring open damper.
• Kevlar gearing reduces wear, more than doubling damper life.
• It has a 24-volt motor used to control circulating air in heating, cooling and ventilating systems.
